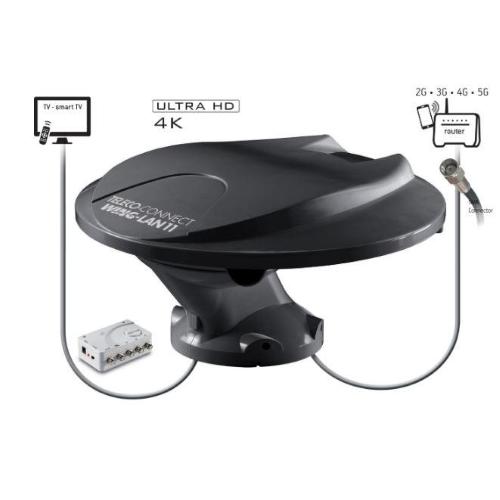

ANTENNA OMNIDIREZIONALE WING-LAN 11 DAB + DVBT/T2 OMNIDI. + ANTENNA 2G-3G-4G-5G

Internet Antenna 2G-3G-4G-5G + Omnidirectional TV Antenna + Radio

This solution allows you to better view digital terrestrial broadcasts and, using a router with a telephone SIM, to have a fast Wi-Fi network available in the vehicle that can be used by Smart TVs, smartphones, tablets and computers.

WING-LAN11 integrates an omnidirectional TV antenna for digital terrestrial DVBT/T2 and DAB+ radio signals, with a high-efficiency internet antenna for 2G-3G-4G-5G signals.

Connected to the TELECO router, it creates a WLAN Wi-Fi hot spot for surfing the web and watching your favorite broadcasts, even in streaming.

TECHNICAL FEATURES:
TV CHANNELS: 5-12 / 9-48
4/5G RECEIVING FREQUENCIES:
2100(B1) 2600(B7) MHZ 3G UMTS: 100 / 900 M HZ GSM: 900 / 1800 MHZ
4G LTE: 800 (B20) 900(B8) 1800(B3)
TV BAND GAIN WITH AMPLIFIER:
CH 5-12 16 DB
CH 21-48 26 DB
POWER SUPPLY: 12/24 VOLT
Dimensions:
DIAMETER: 38 CM
HEIGHT: 16.5 CM
WEIGHT: 1.2 KG 3G

Package contents:
1 Antenna complete with 5 m DVBT/T2 coaxial cable, 5 m SMA 2G-3G-4G-5G coaxial cable and 3 F connectors
1 adjustable gain amplifier with 3 outputs for 3 TVs + 1 DAB and FM radio output, operating at 12 and 24 Vdc

Television and Internet are the two entertainment services most used by camper travellers, often in combination, thanks to Smart TVs. In both cases, the signals are completely digital, and in the absence of an excellent reception system, difficulties may be encountered both in watching normal broadcasts and in using apps or streaming, which is increasingly important today, for example, to be able to follow the Italian football championship.

The new Teleco Wing-LAN 11 is intended to improve the performance of the family of Teleco omnidirectional antennas, which have been sold with excellent results in Italy and throughout Europe for many years. Designed with particular attention to recreational vehicles and to withstand the highest speeds, it also allows you to
receive and manage the cellular signal to bring the best possible Internet connectivity inside the vehicle.

Made of black ABS, this Wing-LAN 11 stands out for its unmistakable design which adapts to the aerodynamic profile of the latest generations of campers. The diameter of the antenna is only 38 centimetres, while the height is limited to 16.5 centimetres, dimensions which reduce the overall dimensions on the roof of the vehicle to a minimum, normally used to also accommodate accessories such as portholes, photovoltaic modules, chimneys, roof racks, luggage racks and so on.

The Teleco team of engineers and technicians, after extensive research and development, has produced an antenna capable of receiving DVBT/T2 digital terrestrial and DAB+ Digital Radio signals. But not only that: the new Teleco Wing-LAN 11 also integrates a high-efficiency antenna for receiving cellular signals up to 5G. The new amplifier equipped with a 694 MHz filter is able to eliminate any disturbances due to the recent transition of the 700 MHz band from digital TV to 5G. This allows you to improve the quality of the signals by increasing
the speed of the Internet connection and avoiding interruptions in data transmission.

To take advantage of the cellular reception functions of the new Wing-LAN 11, it is necessary to use a router capable of hosting a telephone SIM, such as our Teleco WiFi Van WFT402. This allows the signal to be distributed throughout the vehicle via a high-performance Wi-Fi network, allowing
as well as surfing the net, using apps and watching your favorite programs even in streaming. The use of the external antenna allows this device to be installed even in hidden or less accessible points of the vehicle without reducing its reception capacity.

The digital radio-TV signal amplifier and distributor supplied with the antenna provides three outputs for as many televisions and one output to which an FM and/or DAB+ radio can be connected.
