SOLAR PANEL REGULATOR PRM350 20A MPPT

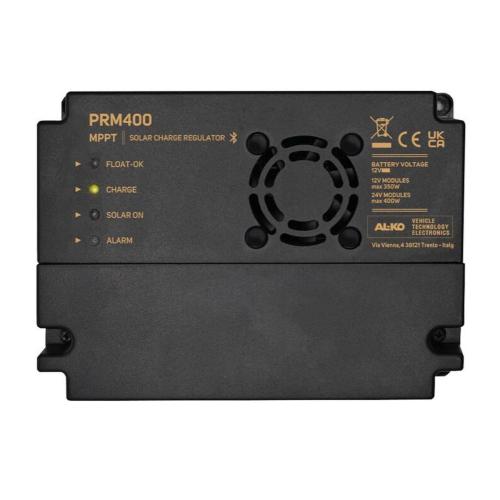

New MMPT PRM400 solar regulator for photovoltaic modules

The PRM400 solar regulator can automatically charge lead-acid batteries (wet, gel, and AGM) and 12V lithium batteries, controlling and limiting the energy supplied by the connected photovoltaic modules. It features a MPPT (Maximum Power Point Tracker) system that allows it to draw the maximum power available from the photovoltaic module at all times. The PRM400 is suitable for operation with photovoltaic modules from 32 to 72 cells, up to a maximum power of 400W. For optimal device performance, we recommend connecting photovoltaic modules with more than 36 cells in series, regardless of the installation type.

Model PRM400
Code 204286
Nominal voltage 12V
Maximum open-circuit photovoltaic module voltage 50V
Maximum applicable power 350W (32-40 modules) -
400W (41-72 modules)
Maximum current 28A
Number of photovoltaic inputs 2
Efficiency >95%
Battery selector 4-position dip switch
Automatic shutdown in the absence of sunlight
Number of charging lines 8
Reverse current blocking device Electronic
Short circuit and reverse polarity protection Yes
Thermal protection Yes
Test panel connection PT 742
Self-consumption 0A (auto shutdown in the absence of sunlight)
Dimensions (mm) 150x110 H48
APP - ONDA SMART SYSTEM

The "ONDA SMART SYSTEM" mobile app was developed specifically to manage and expand the functions of the PRM400. The connection between the PRM400 and mobile devices is via Bluetooth and has a limited range of action
around the vehicle.

Watch the video on the ONDA SMART SYSTEM

The "ONDA SMART SYSTEM" app allows you to:

view the charging current of the photovoltaic modules in real time
view the charging power of the photovoltaic modules in real time
view the battery voltage in real time
view the charging phase
view the PRM400 manual
update the PRM400 firmware
