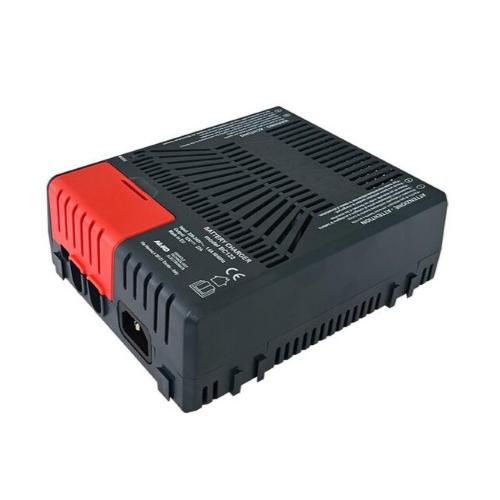

CARICA BATTERIE SWITCHING 22A BC122 PER PIOMBO, AGM, GEL, LITIO SOSTITUISCE CB516 CB520 CB522LT

The BC122 switching charger is a high-efficiency (fanless) battery charger for lead-acid, gel, lithium, and AGM batteries.

Batteries must have a nominal voltage of 12V and a capacity adequate for the charger's current (check the maximum charging current compatibility with the battery datasheet for the battery you intend to connect). The BC122 also functions as a power supply.

If a battery is present and it is powered by mains voltage, the BC122 functions as a battery charger (if the lithium battery algorithm has been selected, the BC122 functions as a battery charger even if it does not detect the battery upon power-up).

The dip switch allows you to select the charging algorithm based on the battery type. When powered up, the green LED flashes to indicate which charging algorithm has been selected using the dip switches.

The charger uses a combination of Constant Current and Constant Voltage charging, which significantly reduces charging time and prevents damage to the batteries even when the charger is permanently connected to the 230V mains.

When a load is connected, the battery charger immediately supplies the necessary current, preventing the battery from discharging (this is true if the load current is less than the maximum current supplied by the battery charger; otherwise, the battery will still discharge with a current equal to the difference: (ILOAD - ICHARGE BATTERY). A temperature probe can be connected to the battery charger (to be placed on the battery) to adapt the selected charging algorithm to the battery temperature.

Model BC122
Code B1.0543.002
Technical Data
Rated Voltage 230Vac +-10%
Frequency 50Hz+60Hz
Maximum Power 320W
Protection Fuse 4A
Output Technical Data
Maximum Current 22A Continuous
Short Circuit Protection Yes
Overload Protection Yes
Output Overvoltage Protection Yes
Overtemperature Protection Yes
Battery Overtemperature Protection Yes
Thermal Protection Yes (with NTC sensor)
Battery type selector: Dip switch
Charging line: IUou IUoU - AGM / GEL / Pb / LiFePO4
Number of charging lines: 8
Mains presence signal (s): 12V (MAX 150mA)
General technical data
Efficiency: 93%
Ambient temperature: -20°C to 40°C
Internal fan: None
Protection rating: IP 20
Mains connection: 3-pin IEC EN60320 C14
Battery connection: "M6" screw
Dimensions (mm): 146x183x65mm
Weight: <0.8kg
